Hive active thermostat wiring diagram. Hive is a british gas product, but the diagram of hive you have shown is the dual channel version for systems with stored hot water (aka a hot water cylinder). This is the wiring diagram for the hive receiver that will go next to the for info the blue (common) and brown (heating on) wires have ~ find support for hive active heating, hive active lights, the hive motion sensor and window or door sensor, and the hive active plug.hive active heating 2 wiring diagram efcaviation from hive wiring diagram y. 2) connect the hive heating on to rt / 230v ac room thermostat at x1 and hive common (or hot water off) to l at x1 Hi, i'm just trying to wire my hive receiver.

So i was going to run a 3 core t&e from the boiler to the receiver. This means its ready to connect to the hub and thermostat 5 test the receivers wiring to the heating system by pressing the central heating button. For a quick installation, follow the steps in order we recommend that you install hive active heating™ in the order shown in the diagram below. View and download hive active heating installation manual online.

Connecting block inside boiler, mains e n l are connected one unused marked fp. The hive (n) & (l) should be connected to the n and l 'load' terminals of the same 3a fused spur as the boiler. 1) remove the bridge connection on x106 for 24vdc room thermostat. Electrical wiring for central heating systems.

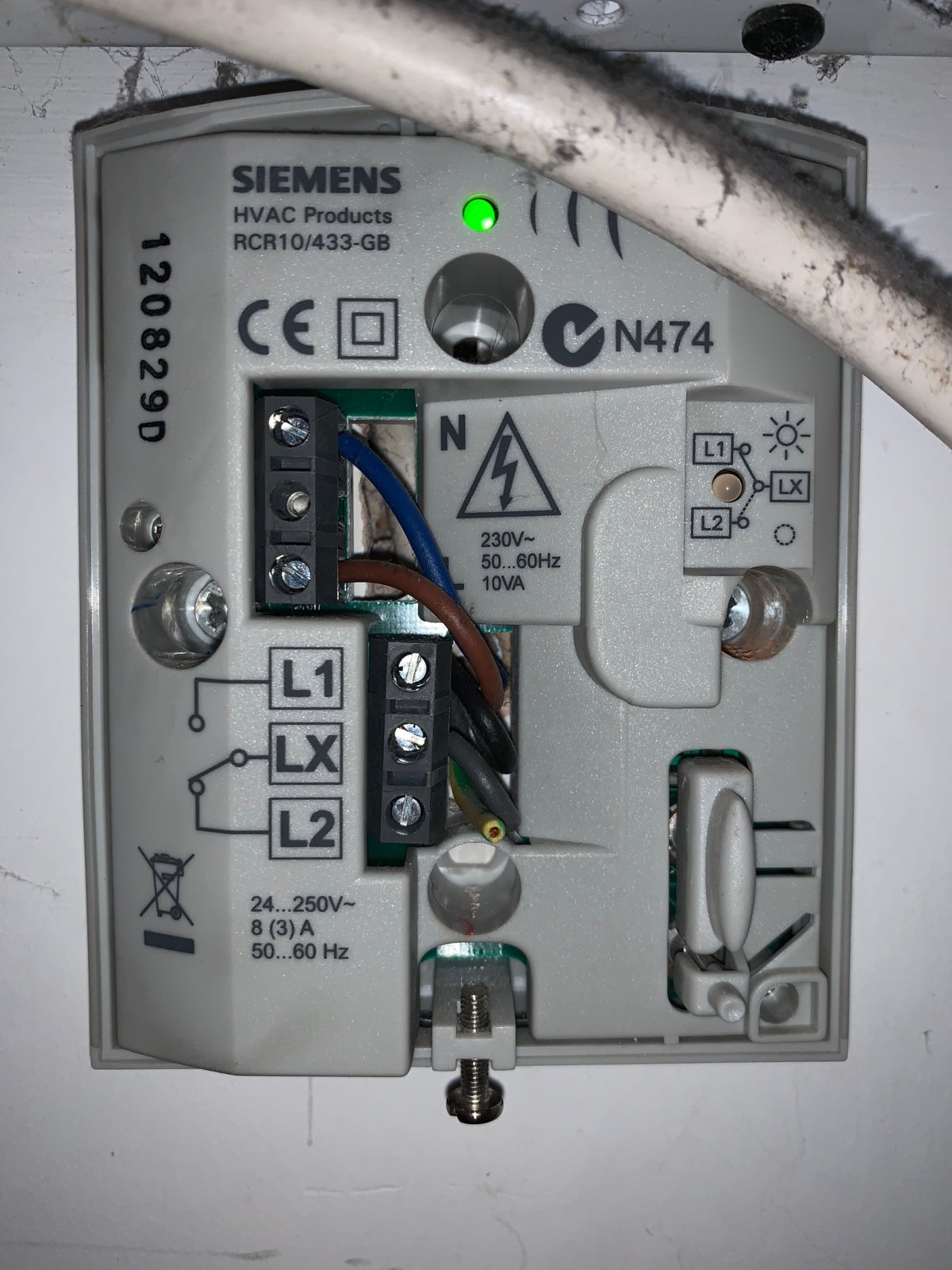

This is our wired thermostat for combi boilers. Just wondering how to replace a honeywell bdr91 with a hive 2 receiver the wiring for hive active heating heres the hive wiring diagram. It takes 3x aa batteries. Scenario 1 you have an existing programmer on the wall that has a compatible backplate.

Hive active heating wiring diagram for hive active heating the thermostat receiver and hub are installed together so installation should only be carried out by a qualified engineer see page 5. A video showing how to install a hive thermostat onto a worcester bosch greenstar 24i junior boiler. Hi all, looking to wire up a hive receiver but never done one on a job before (just finished 4 year apprentachip flat/house bashing mainly) so just want to check i'm going to be doing it right before going ahead. It's just a simple set up at the min.

Gravity system y plan with no hot water off wire. If you have an existing wireless thermostat with an external receiver already wired in, then all you need to do is follow the pictures above and wire up your new receiver, paying careful attention to the 240v live and neutral wires, and ensuring they go in the correct terminal on the new receiver. This is the wiring diagram for the hive receiver that will go next to the for info the blue common and brown heating on wires have find support for hive active heating hive active lights the hive motion sensor and window or door sensor and the. The blue wire goes to n as it does now the brown wire goes to l as it does now the black wire in a goes to the hive com 1 the grey wire in b goes to the hive heating on 3.

The hive (l) will also need to be linked to hive terminal (1) 'common' hive terminal (3) 'heating on' is the live supply that goes to the underfloor heating motorised valve's live wire. It's a good option if you want to connect it to your existing thermostat's wiring and put it in the same place. We recommend that you install hive active heating™ in the order shown in the diagram below. Restore power to the central heating system the receivers status light should flash amber.

Hi to you all,new today.may i wish you all a happy and peaceful new year. I do only have 3 wires plus a earth which i believe you don't really need. Hive active heating 2 wired thermostat. Iot wiring diagram find us for search of the schematics, wiring diagrams and technical photos

Hive wiring diagram ideal combi. All wallpapers and backgrounds found here are believed to be in the public domain. Install the hub (wait until the light flashes amber) (wait until the status light flashes amber) (it will show “find”, then connect) (on web or mobile) 1 add the thermostat 3 Click to loginfor more info visit the faq.

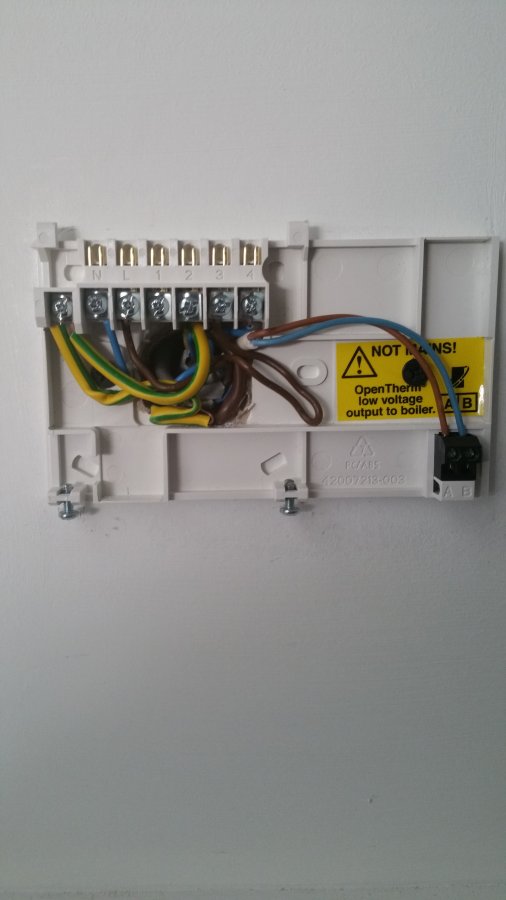

This video is a step by step guide to how i go about the installation of a hive smart thermostat. This is the wiring diagram for the hive receiver that will go next to the for info the blue (common) and brown (heating on) wires have ~ for a quick installation, follow the steps in order we recommend that you install hive active heating™ in the order shown in the diagram below. Y plan wiring diagram with hive. Have been presented with hive active set,don,t know how to connect.have a glowworm30 cxi.control thermostat only has a black wire connected toterminal rt and a brown connected to live.

Hot water off nc 2. Install hub wait until the hub flashes amber 1 here’s what you’ll need to install hive active heating • a working gas central heating system • an existing broadband connection with a spare ethernet port • an android or apple smartphone to control your heating via A direct replacement for the old bg thermostat that you have would. The hive was installed about 6 months ago before that.

Looking at the wiring diagram in the manual. For quick and efficient setup install hive active heating in this order: We've created a guide for installing your hive active heating which you can download here. These smart thermostats are a great way to control your hea.

Posted on august 24, 2020 by. This is the simplest route and should ensure a quick and efficient setup. S plan wiring diagram pdf wiring diagram i have just had hive installed on gravity system wiring. L n and i presume 3 is a switch for the boiler.

See pictures you can tell what one the old thermostat is. I've followed the wiring diagram but when i press the. I think you need to: If you have a gravity fed or a y plan system 3port valve with no hot water off wire the green status light should be altered to be blue.
